WD PANEL with size
PRODUCT INFORMATION

Model Watts Dimension Lit position LED QTY Control Mode
PWD3030 18W 11.62×11.62×0.43″/295×295×11mm Edge Lit 2 sides 96pcs/SMD4014 Epistar 2.4G Hz WIFI/RF Remote
PWD3060 27W 11.62×23.43×0.43″/295×595×11mm Edge Lit 1 sides 144pcs/SMD4014 Epistar 2.4G Hz WIFI/RF Remote
PWD6060 36W 23.43×23.43×0.43″/595×595×11mm Edge Lit 2 sides 192pcs/SMD4014 Epistar 2.4G Hz WIFI/RF Remote
PWD30120 48W 11.62×47.05×0.43″/295×1195×11mm Edge Lit 1 sides 252pcs/SMD4014 Epistar 2.4G Hz WIFI/RF Remote
PWD60120 72W 23.43×47.05×0.43″/595×1195×11mm Edge Lit 2 sides 360pcs/SMD4014 Epistar 2.4G Hz WIFI/RF Remote
Control Distance Function Input Voltage THD PF CRI
20-50m Warmable + Dimmable 100~240Vac,50/60Hz <20% >0.95 >80

FEATURES

Smooth Dimmable & CCT warmable Constant Current Driver Low Noise
WIFI/RF remote control, wall transmission Instant ON start High PF, Low THD
CCT&Brightness Remembrance against power off Start Temp. -10°C~40°C Aluminum back cooling
control 4 channels, each channel multiple panels Ansi surge protection PB, Mercury free
20-50m distance control CE RoHs FCC PSE Complied Warranty 3 years

INSTALLATION

SAA INSTALLATION2

LIGHTING EFFECT
PANEL EFFECT

USAGE INSTRUCTION

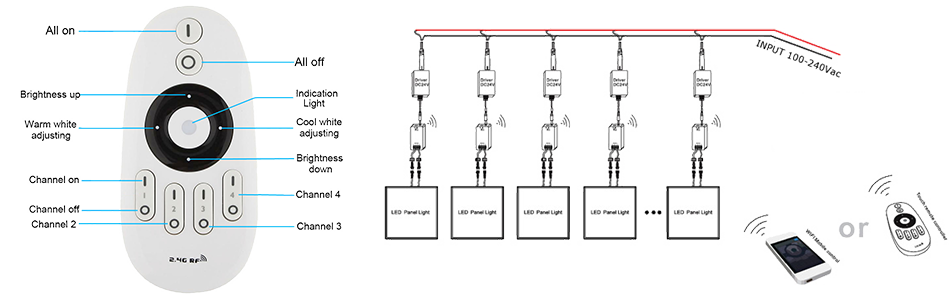

CCTP USAGE

PACKING
panel pack

Model QTY/CTN CTN MEAS. N.W./CTN G.W./CTN
PWD3030 10pcs 435×368×410mm 11.20kg 12.10kg
PWD3060 5pcs 697×360×225mm 12.55kg 14.00kg
PWD6060 6pcs 700×300×700mm 22.75kg 25.80kg
PWD30120 4pcs 1290×390×190mm 21.75kg 24.50kg
PWD60120 2pcs 1300×700×105mm 17.12kg 20.50kg

GENERAL DESCRIPTION & APPLICATIONS
FOUNTAIN LUCES  Dimmable&Warmable LED Panel is more smart and considerate to life, saving more energy and take care of more to people’s demand.  It can control 4 chanels, and no panel QTY limit of each chanel.  20-30m control distance, smooth dimming and warming. To be sure, it has other common properties of normal panels.

  • Household Lighting
  • Office Lighting
  • School Lighting
  • Hospital Lighting
