PRODUCT INFORMATION
| Model | Dimension | Integral Watts | Lit Position | LED QTY |
| UP6060 | 23.75×23.75×0.43″ | 36W/48W | Edge lit 2 sides | 96pcs/120pcs SMD5630 Samsung |
| UP60120 | 23.75×47.75×0.43″ | 60W/72W | Edge lit 2 sides | 180pcs/240pcs SMD5630 Samsung |
| UP30120 | 11.82×47.75×0.43″ | 36W | Edge lit 1 side | 120pcs/SMD5630 Samsung |
| LEDs Efficacy | Input Voltage | PF | THD | CRI | CCT |
| 95LM/W | 100~277Vac, 50/60Hz | >0.9 | <20% | >80 | 3000±300K, 4000±300K, 5700±300K |
FEATURES
| Aluminum frame and back good heat sink | Instant on start | UL/cUL, DLC qualified |
| frame Stoving Varnish white finish | Lumen maintenance@50,000Hrs>70% | Warranty 5 years |
| Flicker free | Start Temp.-10°C~40°C | ANSI Surge Protection |
| High PF, Low THD | Driver Efficacy>90% | Silence No noise |

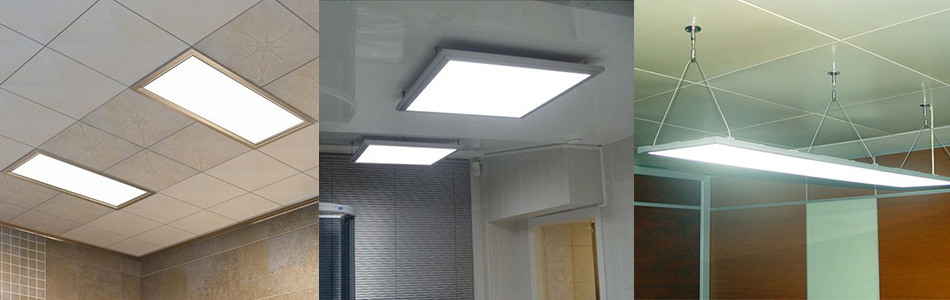

INSTALLATION

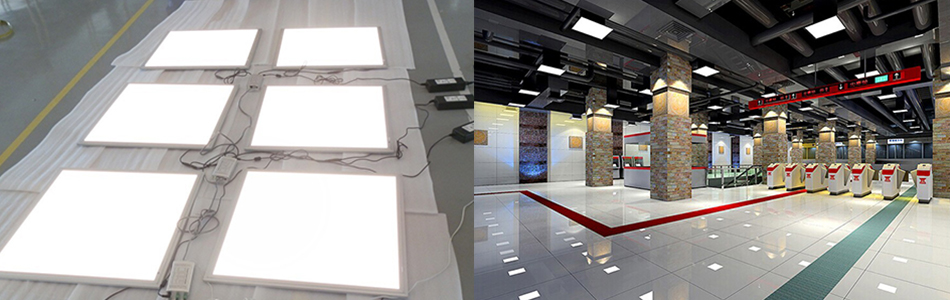

LIGHTING EFFECT

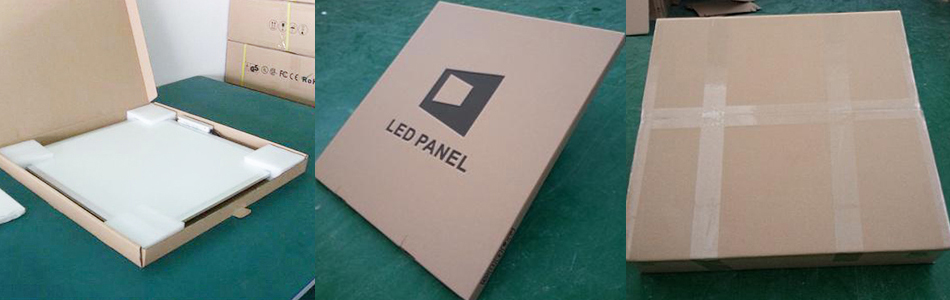

PACKING
| Model | QTY/CTN | CTN MEAS. | N.W./CTN | G.W./CTN |
| UP6060 | 6pcs | 700×300×700mm | 22.75kg | 25.80kg |
| UP30120 | 4pcs | 1290×390×190mm | 21.75kg | 24.50kg |
| UP60120 | 2pcs | 1300×700×105mm | 17.12kg | 20.50kg |
GENERAL DESCRIPTION & APPLICATIONS
FOUNTAIN LUCES UL/cUL & DLC qualified Ceiling Panels can be applied in both the USA and Canada, as they are approved by UL/cUL & DLC. This series is targeted to make extreme on the simple aspect of general lighting, offering comfortable lighting experience. The principle is Do the Best on the Simple.
- Office Lighting
- Mall Lighting
- Library Lighting
- Household Lighting
