PRODUCT INFORMATION
| Model | Dimension | Watts | Lumens | Lit Position | LED QTY |
| RP3030 | 295×295×11mm | 15W | R:180LM, G:260LM, B:80LM | Edge lit 2 sides | 72pcs/SMD 5050 |
| RP3060 | 295×595×11mm | 24W | R:360LM, G540LM, B:160LM | Edge lit 1 side | 72pcs/SMD 5050 |
| RP6060 | 595×595×11mm | 32W | R:480LM, G720LM, B:240LM | Edge lit 2 sides | 144pcs/SMD 5050 |
| RP30120 | 295×1195×11mm | 40W | R:630LM, G:840LM, B:290LM | Edge lit 1 side | 180pcs/SMD 5050 |
| Beam Angle | Color | Control Mode | Input Voltage | PF | THD |
| 160° | RGB | External Controler, Common Anode 4 lines | 12/24Vdc | >0.9 | <20% |
FEATURES
| Aluminum frame and back good heat sink | Instant on start | CE, RoHs certified |
| frame Aluminum color finish | Lumen maintenance@50,000Hrs>70% | Warranty 3 years |
| Flicker free | Start Temp.-10°C~40°C | ANSI Surge Protection |
| High PF, Low THD | Driver Efficacy>90% | Silence No noise |

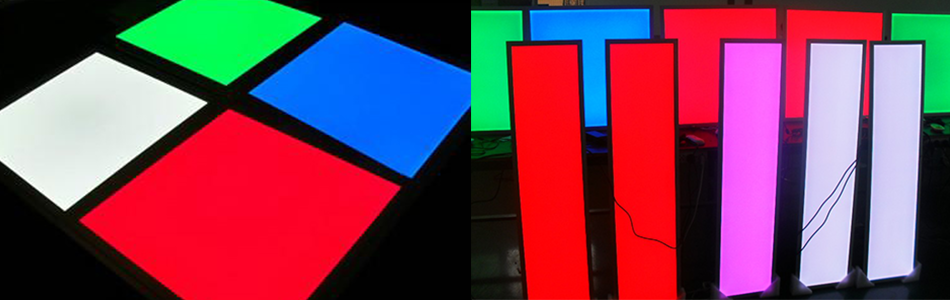

LIGHTING EFFECT

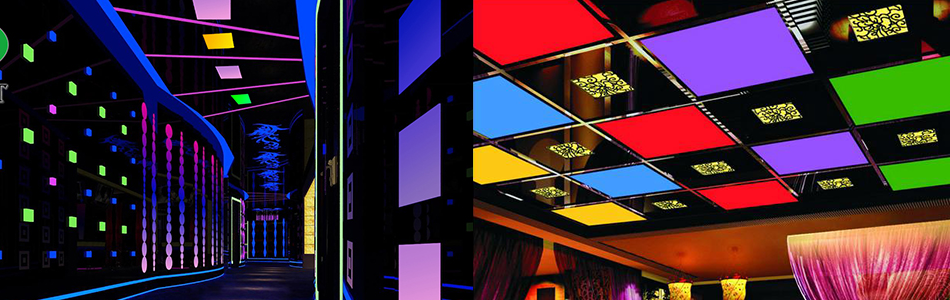

APPLICATION CASE
PACKING
| Model | QTY/CTN | CTN MEAS. | N.W./CTN | G.W./CTN |
| RP3030 | 10pcs | 435×368×410mm | 11.20kg | 12.10kg |
| RP3060 | 5pcs | 697×360×225mm | 12.55kg | 14.00kg |
| RP6060 | 6pcs | 700×300×700mm | 22.75kg | 25.80kg |
| RP30120 | 4pcs | 1290×390×190mm | 21.75kg | 24.50kg |
GENERAL DESCRIPTION & APPLICATIONS
FOUNTAIN LUCES RGB Ceiling Panels are made for atmosphere lighting, like night club, party, pub, bar, KTV…etc. Besides common properties with ordinary panel, it carries pretty well the function of entertainment, amusement.
- Night Club Lighting
- Bar Lighting
- Party Lighting
- KTV Lighting
