PRODUCT INFORMATION
| Model | Watts | Lumens | Dia. | Length | Base |
| V-RT-09W | 9W | 875LM | 1.02″/T8 | 23.15″/588mm | G13 |
| V-RT-18W | 18W | 1750LM | 1.02″/T8 | 47.17″/1198mm | G13 |
| Input Voltage | PF | THD | Driver Efficiency | CRI | LM/W |
| 100-240Vac | >0.90 | <20% | >90% | >80Ra | >90LM/W |
FEATURES
| RFID (Radio Frequency Identification) | 10% lumens standby, 100% lumens working | Saving energy over 90% than traditional lamps |
| Identification 120°, 8-10m | Sensor free from temperature, noise, dust | 0.5s sensitive start, 2-60s delay in absence |
| Driver Self-Ballasted | Lumen Maintenance @50,000Hrs > 70% | Aluminum Back outstanding cooling performance |
| Start Temp. -35°C~45°C | High PF, Low THD | Mercury free |
| Sound Rating Class A | CE RoHs FCC PSE Complied | CCT 2800-3500K, 4000-4500K, 6000-6500K |
| ANSI Surge Protection | Warranty 3 Years |

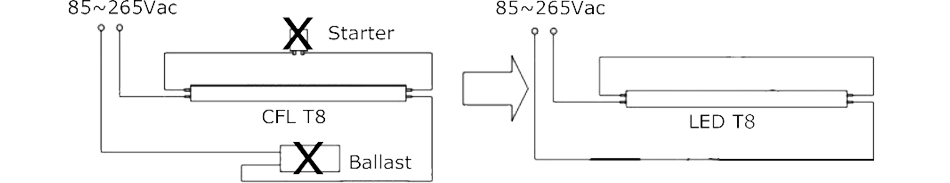

INSTALLATION
Notes:
1. Power off before installation. 2. Use in regular ambient temperature
3. Use under correct voltage. 4. Make sure no heat-sensitive device around.

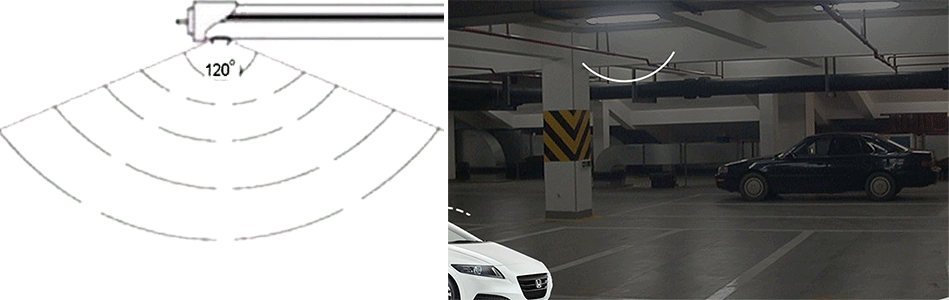

LIGHTING EFFECT

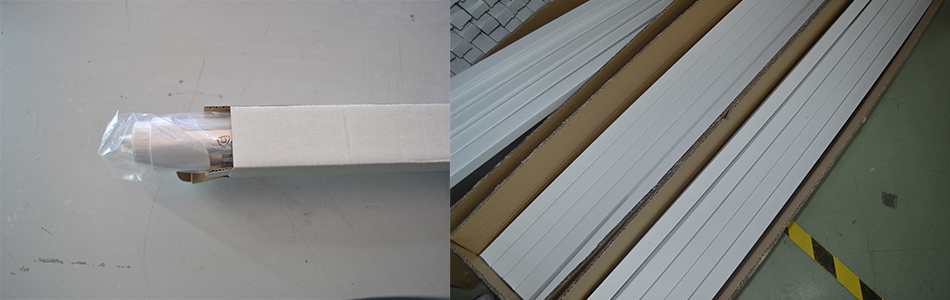

PACKING
| Model | QTY/CTN | CTN MEAS. | N.W./CTN | G.W./CTN |
| V-RT-09W | 30pcs | 640×250×250mm | 5.50kg | 6.00kg |
| V-RT-18W | 30pcs | 1230×250×250mm | 10.0kg | 10.8kg |
GENERAL DESCRIPTION & APPLICATIONS
FOUNTAIN LUCES Radar Sensor T8 are produced to replace non-detective tube lights. They are made with sensitive sensor of long distance, Saving energy more than ordinary LED tube lights. PC cover primastic frosted/transparent optional. They have remarkable thermal management and long lifespan, thus low maintenance cost.
- Corridor Lighting
- Parking Lot Lighting
- Basement Lighting
- Storage Lighting
