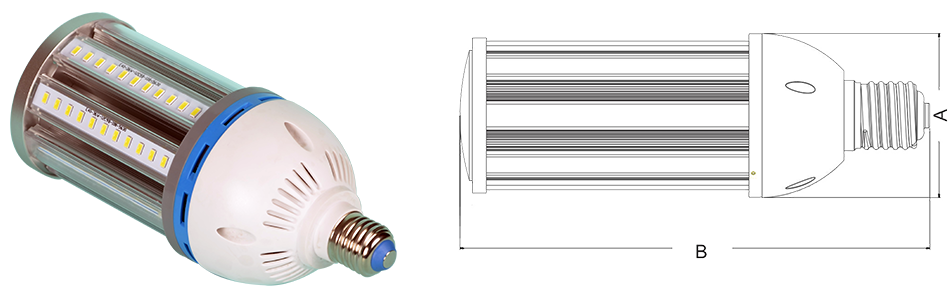

Acorn 1st
PRODUCT INFORMATION

P/N. Watts Lumen Equiv. HPS Dia. Length
F-ACRA-27 27W 2700~3240LM 68W ∅3.740″ 7.736″
F-ACRA-36 36W 3600~4320LM 90W ∅3.740″ 8.721″
F-ACRA-45 45W 4500~5400LM 113W ∅3.740″ 9.705″
F-ACRA-54 54W 5400~6480LM 135W ∅3.740″ 10.689″
F-ACRA-80 80W 8000~9600LM 250W ∅4.724″ 12.362″
F-ACRA-100 100W 10000~12000LM 300W ∅4.724″ 13.150″
F-ACRA-120 120W 12000~14400LM 360W ∅4.724″ 13.937″
F-ACRA-150 150W 15000~18000LM 450W ∅4.724″ 13.937″
Input Volts 100~277Vac, 50/60Hz PF 0.95 Driver Constant current,
Efficiency 93%, UL norm complied
Lamp Efficacy 100~120LM/W LED Epistar Chip, LM80 CCT 2700~6500K
CRI ≥75 Ra for outdoor IP Rating IP64 Beam Angle 360°
Base E26/E27, E39/E40 THD <20% Body Material PC (V-0)

FEATURES

High quality Aluminum heat sink Instant on start UL norm complied, no UL Cert.
Shock/ vibration resistent Lumen maintenance@50,000Hrs>70% Warranty 3 years
Flicker free Start Temp.-40°C~50°C ANSI Surge Protection
High PF, Low THD Driver Efficacy>93% Silence No noise

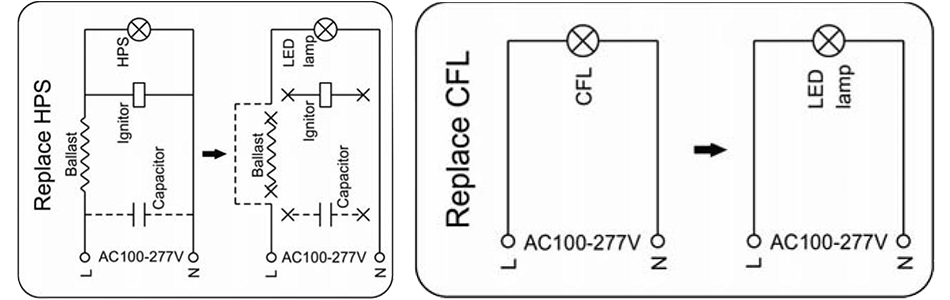

WIRING DIAGRAM
Acorn WIRE
1. Power off before installation 2. Remove ballast while wiring 3. Have lamp work under correct Volts
4. Not use lamps ≥80W in closed fixtures.   5. At least 3″ space between lamp and housing

APPLICATIONS

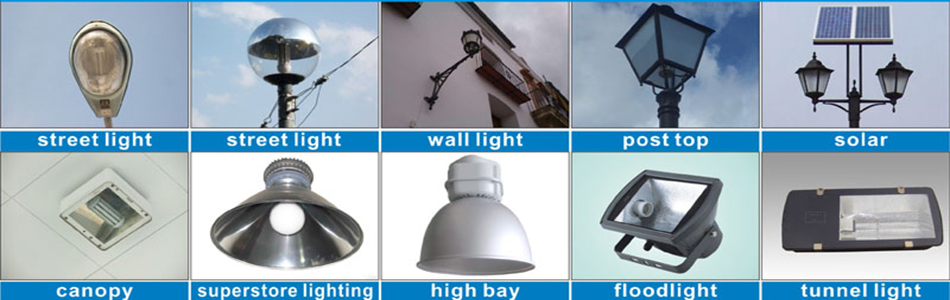

Acorn APP

PACKING
acorn packing

P/N. QTY/CTN G.W./CTN CTN SIZE
F-ACRA-27 30pcs 21.05kg 520×330×570mm
F-ACRA-36 30pcs 22.10kg 520×330×570mm
F-ACRA-45 25pcs 22.25kg 530×530×350mm
F-ACRA-54 25pcs 24.25kg 530×530×350mm
F-ACRA-80 9pcs 15.98kg 450×450×390mm
F-ACRA-100 9pcs 18.32kg 450×450×390mm
F-ACRA-120 9pcs 19.76kg 450×450×390mm
F-ACRA-150 9pcs 19.76kg 450×450×390mm

GENERAL DESCRIPTION
FOUNTAIN LUCES Acorn Retrofit Lamps are made to replace traditional HID (HPS\HPM), MHL, CFL with its high lumens, long maintance and even illumination. Security is assured with excellent driver in compliance with UL norm though no UL cert yet. CRI 75+ Ra for outdoor use, 80+Ra for indoor.

  • Post top fixtures
  • Bollard fixtures
  • Wall pack fixtures
  • Canopy fixtures
